Caratteristiche
- Material: Realized in 15/10 Steel painted.
- Colour: Surface finish Black RAL 9011.
- Frame: Load-bearig frame
- Load: Static load capacity 800Kg.
- IP Grade: IP20 protection degree in according to EN 60529
- Doors front: Front, single door, perforated 75%
- Doors rear: Rear, vertical double door, perforated 75%
- Doors: Reversible, with quick release hinges system, foldaway handle and 2 key supplied
- Doors open: Opening 180°
- Side: Blind Panel

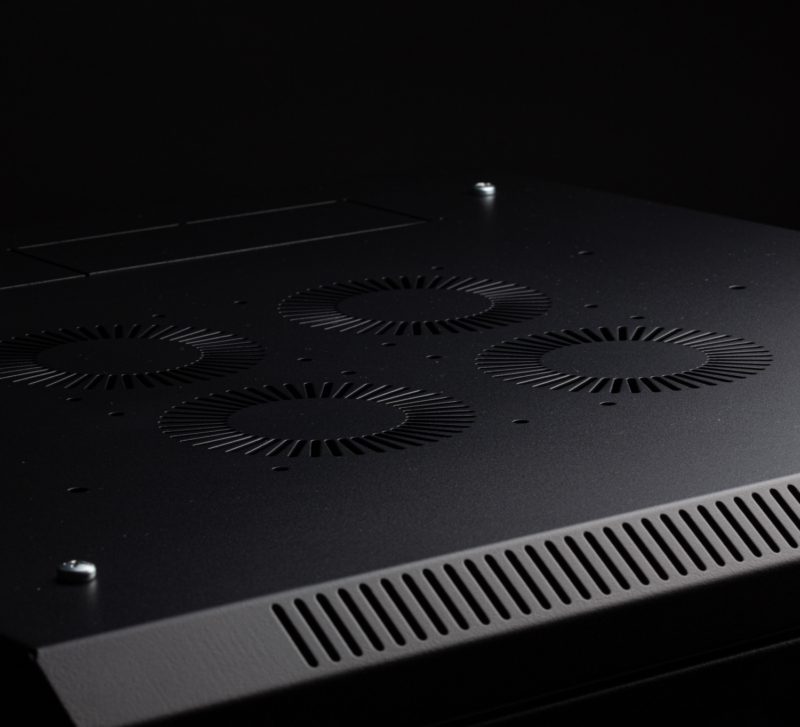

- Roof and floor: Roof with predisposition for mounting 2-3-4 fans ventilation unit; passive ventilation slots for the recirculation of hot air; pre-punched space for cable inlet

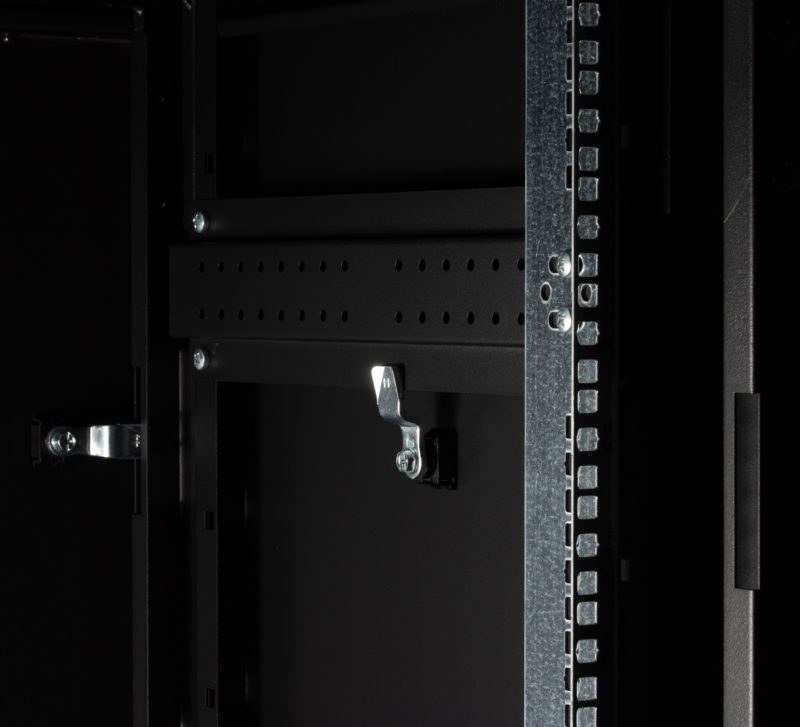

- Other: Front and rear 19″ in 20/10 galvanized steel side uprights adjustable in depth, pitch 46mm with intermediate pitches of 15,875mm; 2 front vertical cable management
Optional
- Finishing: Finishing plinth H100mm with removable panels
- Wheels: Wheels and wheels with brake
Certification
-
UNI EN ISO 9001, IEC 271 part 1,2,3, EN 61439-1, EN 60529, EN 62208 Empty enclosures for low-voltage switchdear and controlgear assemblies
